Our Fleet
RIG01

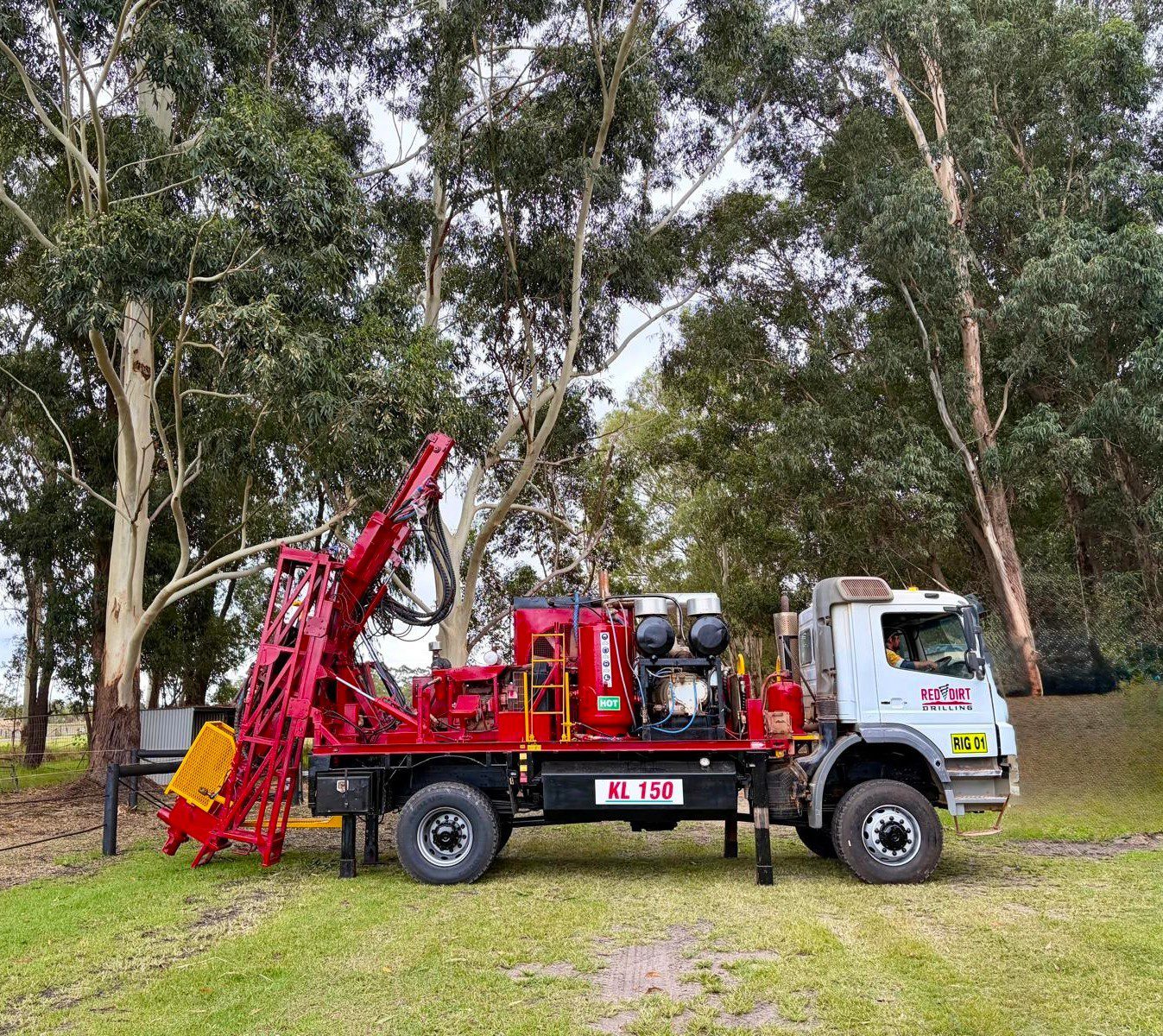

KL 150 Drill Rig
The KL 150 is a reliable and versatile drilling rig suited to both Aircore (AC) and slimline Reverse Circulation (RC) drilling. With a drilling capacity of up to 150 metres, it supports exploration, grade control, and sample collection across a range of site conditions.
Mounted on a Mercedes 4x4 truck, the rig offers strong mobility and is well-suited to remote and challenging environments, delivering consistent and efficient drilling performance.
Specifications
| Rig Type | KL 150 |
| Drilling Capacity | Up to 150 metres. |
| Mounting | Mercedes 4x4 |
| Compressor | Cummins L10 (250 PSI @ 750 CFM) |
| Boosted Output | Up to 500 PSI |
| Key Features | High mobility, suited for remote operations. |
RIG02

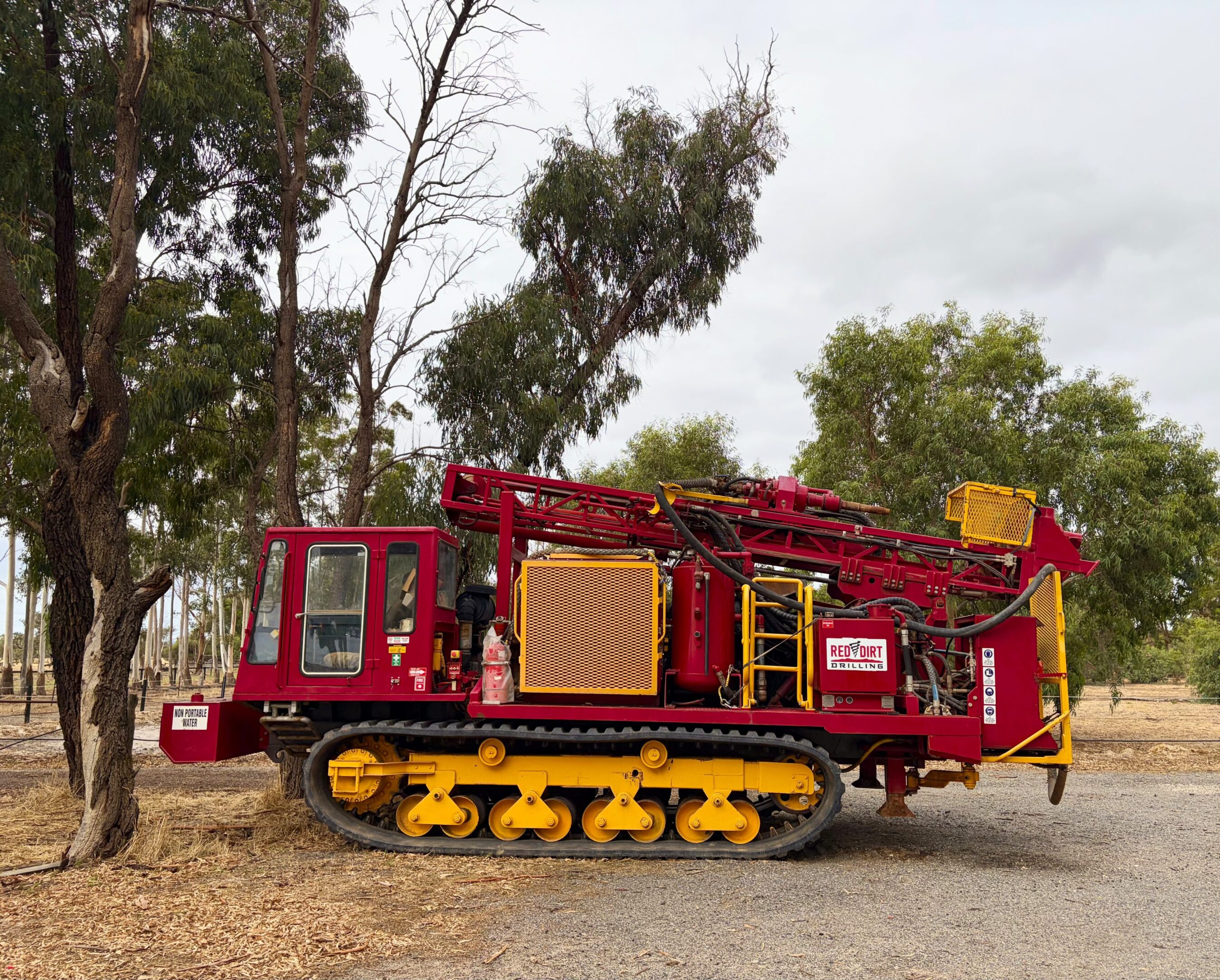

KD150 Drill Rig (Low Impact)
The KD150 is a low-impact drilling rig designed for both Aircore (AC) and slimline Reverse Circulation (RC) drilling. Rebuilt in 2023, it is well suited to environmentally sensitive exploration programs, delivering reliable sample collection while minimising ground disturbance.
Mounted on a Morooka tracked carrier, the rig operates at less than 5.5 PSI ground pressure, allowing access across soft and challenging terrain. With drilling capacities of up to 150 metres (AC) and 120 metres (RC), it provides flexibility across a range of project requirements.
Specifications
| Rig Type | KD150 (Rebuilt 2023) |
| Drilling Methods | Aircore (AC), Slimline RC |
| Drilling Capacity – Aircore | Up to 150 metres |
| Drilling Capacity – Slimline RC | Up to 120 metres (with booster) |
| Carrier | Morooka tracked carrier |
| Ground Pressure | < 5.5 PSI (low impact) |
| Compressor | CAT 3306 (250 PSI @ 750 CFM) |
| Booster | 500 PSI |
| Key Features | Low ground pressure, suited for sensitive terrain |
| Fuel Capacity | 800 litres |
| Water Capacity | 900 litres |
RIG03

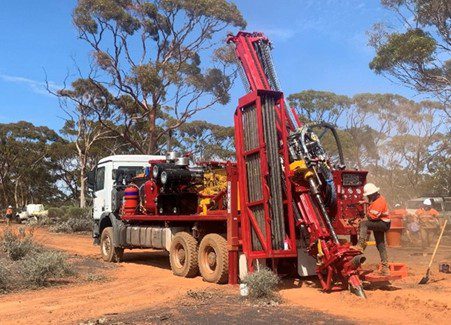

DRA160 – High-Capacity Aircore & Slimline RC Rig
The DRA 160 is a high-capacity drilling rig designed for both Aircore (AC) and slimline Reverse Circulation (RC) drilling. Fully rebuilt in 2021, it delivers reliable performance and high-quality sample collection across a wide range of exploration programs.
With drilling capacities of up to 170 metres for both AC and RC, the rig offers excellent depth capability and versatility. Mounted on a Mercedes 6x6 truck, it provides strong mobility and access across remote and challenging terrain while maintaining efficient mobilisation.
Powered by a CAT 3406 compressor system delivering 350 PSI at 900 CFM — with a 700 PSI booster available — the DRA 160 is well suited to demanding ground conditions and higher-capacity drilling requirements.
Specifications
| Rig Type | DRA 160 (Rebuilt 2021) |
| Drilling Methods | Aircore (AC), Slimline RC |
| Drilling Capacity – Aircore | Up to 170 metres |
| Drilling Capacity – Slimline RC | Up to 170 metres |
| Mounting | Mercedes 6x6 |
| Compressor | CAT 3406 (350 PSI @ 900 CFM) |
| Booster | 700 PSI |
| Key Features | High-capacity drilling, suited for demanding conditions |
| Fuel Capacity | 800 litres |
| Water Capacity | 400 litres |
| Additional Equipment | Hands-free air spanners, tilting rod bin, toolboxes |
RIG04

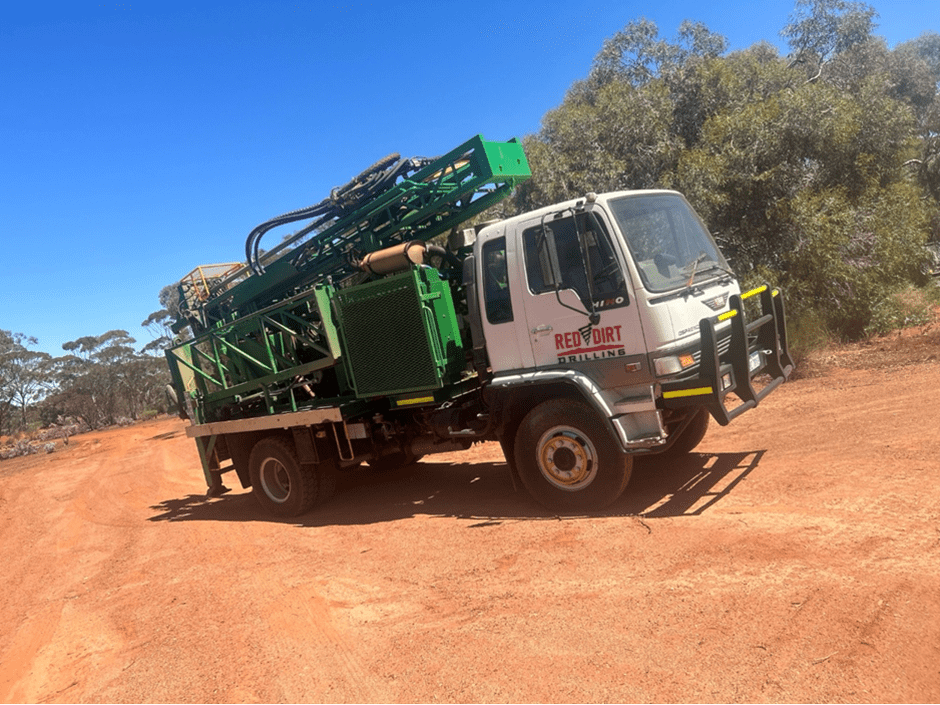

Rig 04 - Compact Aircore Drill Rig
The KD150 is a compact and reliable Aircore (AC) drilling rig designed to deliver safe, efficient, and consistent sample collection. It is well-suited to smaller exploration programs, shallow drilling campaigns, and projects requiring a more agile setup.
Mounted on a Hino 4x4 truck, the rig offers excellent mobility and access across varied terrain, making it ideal for remote and tight-access locations. With a drilling capacity of up to 150 metres, it provides dependable performance for a range of Aircore drilling applications.
Powered by a CAT 3306 compressor system delivering 220 PSI at 600 CFM, the rig is configured for efficient and reliable Aircore operations in the field.
Specifications
| Rig Type | KD150 |
| Drilling Methods | Aircore (AC) |
| Drilling Capacity | Up to 150 metres |
| Mounting | Hino 4x4 |
| Compressor | CAT 3306 (220 PSI @ 600 CFM) |
| Key Features | Compact, mobile, suited for smaller programs |
| Fuel Capacity | 500 litres |
| Water Capacity | 200 litres |
| Additional Equipment | Hands-free air spanners, tilting rod bin, toolboxes |
